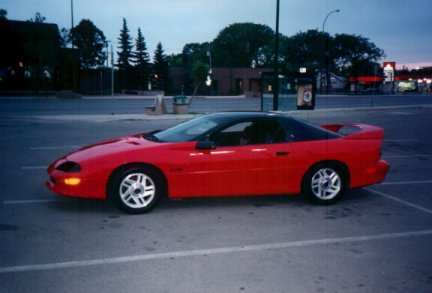

Chris Ashley Z28
.

MODIFICATIONS:

Induction
Callaway Honker Cold Air Induction
Arizona Speed and Marine 58 mm Throttle Body with Coolant Bypass
No MAF Screen
1LE High Flow Bellows
Ported Factory LT1 Manifold (Runners and inlet opening for 58mm throttle
body) Work done by FLO-TECH Racing Heads
Exhaust
Borla Catback Exhaust , No Restrictor Plates
MAC 1 5/8 Headers
MAC Offroad Pipe
Stage 8 Locking Header Bolts
Computer
FastChip Custom Programming
Includes tuning for Comp Cams 230/244, 30# SVO, 3.73 AT, 6400 Rev Limit,
6100 Shift, 2800 Stall, 58mm Throttle Body, Ported Heads
Ignition
MSD 6AL Ignition
TPIS Spark Plug Wires
NGK TR55 Spark Plugs
Accell 300+ Coil Part # 140011
Valve Train and Heads
Competition Cams Camshaft Grind 306 - Duration @ .05 230 244, Lift .544 .576
(with 1.6 rockers) Lobe Seperation 112
Crane Cams Gold 1.6 Roller Rockers
Competition Cams Double Valve Springs Part 986-16
Ported Factory Aluminum Heads with 2.00 Intake and 1.56 Exhaust Valves. Work
done by FLO-TECH Racing heads
FelPro Gasket #1074 Boosting compression to 11.0:1
ARP Studs and Head Bolts
Transmission and Drivetrain
Precision Industries Vigilante Torque Converter 2800RPM Stall
TransGo 4L60E-HD2A Reprogramming Kit
Auburn Pro Series Carrier With GM 3.73 gears
1LE Aluminum Driveshaft
TA Rear End Girdle and Main Stud Kit
Suspension
1LE Sway Bar Package
Eibach Spring Kit
Hotchkis Rear Suspension Kit Including Control Arms and Panhard Rod
Energy Suspension Transmission Mount
Kenny Brown Double Diamond Subframe Connectors
FLO-TECH Torque Arm
G2 Lower Control Arm Brackets
Miscellaneous
Hypertech 160 Degree Powerstat
March Power Pulley
TPIS Adjustable Fuel Pressure Regulator set at 47 pounds
G2 LT1 Billet Valve Cover Breather
SVO 30 Pound Injectors
Relocate IAT to cold air intake
LT4 Knock Module
Dressup
Wings West Super Style Spoiler (Currently off car due to stress cracks in
fibreglass)
BFG Drag Radials (255/50/16) mounted on factory rims
Best time : 12.14 @ 112.14 On Drag Radials


Chris Ashley
